The Zoom LiveTrak™ L-20R is a rack-mountable digital mixer that allows musicians to control their live mix right from the stage with the use of an iPad. With wireless control, 20 discrete channels, 22 tracks of recording and six custom monitor mixes, the L-20R offers a complete solution for any venue

L20R main image
rear view

Portable and Powerful

Featuring 16 mono mic/line inputs and two stereo inputs, the L-20R can handle the most demanding stages. The L-20R offers two EFX busses and each channel includes a 3-band EQ, pan controls and compressor.

engineer with L-20R

22 Tracks of Recording

During your live performance, record 20 channels plus a stereo mix directly to an SD card, then transfer your tracks to your DAW for your final edit.

*Effects, EQ, overdub, audio interface, and fader modes A-F are not available in 96 kHz.

musician mixing with iPad

It’s Your Monitor Make It Your Mix

With six independent monitor outputs, the L-20R enables musicians to create their own custom mix.

A dedicated output enables the FOH engineer to easily switch between monitoring the main and sub mixes.

iPad wireless control

iPad Control

With iPads, the FOH engineer and 6 musicians can control their own mix from anywhere in the venue.

*Compatible with all iPad Air models, iPad Mini 2 and later, iPad Pro, and iPad (2017), running iOS 10.3.3 or newer.

“In the New York City club scene, the L-20R’s size and features make my life a lot easier. It’s got plenty of inputs. It’s got wireless control. It’s got all I need.”

Dennis McCallaEngineer , The Kennedy Administration
Dennis, Engineer quote
iPad closeup

Scene Recall

With the LiveTrak L-20R’s Scene Recall feature, you can instantly recall up to nine different scenes with monitor mixes, EQ settings, effects, and more.

L-20R with cables

Accessible

The L-20R’s versatile design provides easy access for plugging in your cables.

L20R with laptop

A Robust Audio Interface

The L-20R is a 22-in/4-out USB audio interface. Route inputs to any DAW, streaming software, or iOS device*—even while recording to an SD card.

*Apple Lightning to USB Camera Adapter required.

Full band on stage

The Freedom to Control Your Mix

What's in the Box

Included with the L-20R

  • LiveTrak L-20R

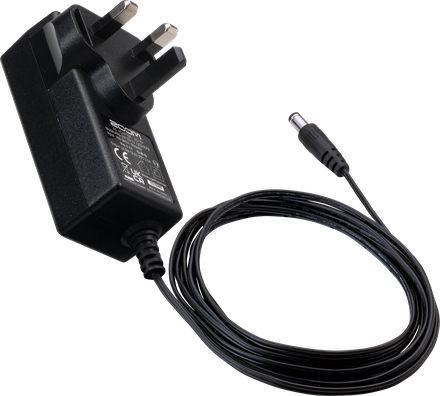

  • AD-19 AC Adapter
  • BTA-1 Bluetooth Adapter
  • Rack Ears
  • Quick Guide

Optional Accessories

  • FS01 Momentary Footswitch
L-20R box
